Apex-Guard™

Gamma Spectroscopy Application

The Apex-Guard application is an advanced gamma spectroscopy solution designed to meet the stringent demands of regulated count rooms. It provides defensible and ready-to-use impurity calculations and reporting, enabling radioisotope producers to reliably fulfill regulatory requirements such as U.S. FDA 21 CFR Part 11**, and elevate the overall quality of radioisotope production.

Tag Features

  • Streamlined reporting of radionuclidic impurity percentages at multiple reference dates
  • Defensible and ready-to-use impurity analysis algorithm*
  • Optimized measurement starts and durations with new counting features
  • Role-based security with Windows User logons and automatic timed logoffs
  • Enhanced security for analysis, device control, and data processing files
  • Comprehensive audit logs with change control and auditing capabilities
  • Integrated electronic signatures in line with U.S. FDA Title 21 CFR Part 11
  • Premium local support options and software updates with subscription service
  • Training classes, IQ/OQ services, and startup assistance available

Description

The Apex-Guard gamma spectroscopy application builds on Genie™ and Apex-Gamma™ software to provide enhanced controls, security, audit features, and data integrity to support compliance and quality needs of regulated count rooms.

Defensible, Ready-to-Use Radionuclide Impurity Identity and Analysis

Radioisotope producers for radiopharmaceutical applications routinely perform quality assurance measurements to demonstrate the radionuclidic purity (RNP) of their products. In gamma spectroscopy, this is achieved by evaluating the sample for impurities and demonstrating the impurities are below a percentage of the total sample activity. To accomplish this with reliability and confidence, the Apex-Guard software impurity analysis algorithm* evaluates the activity of any defined impurity radionuclide against the activity of the sample, which can be compared to a user-defined limit.

The reference sample activity can be defined in a number of ways, including externally-reported activity or from the same gamma spectroscopy measurement. For both the sample activity and the impurity activity, the Apex-Guard impurity algorithm accounts for measurement uncertainties and introduces a new metric — Maximum Potential Percent Impurity (MPPI) — providing defensible, confident reporting of the sample’s radionuclidic impurity.

*The Apex-Guard software impurity analysis algorithm is patent-pending.
**Apex-Guard Software and Mirion’s IQ/OQ Service are designed to ensure customers can meet Title 21 CFR Part 11 readily and easily. Please note that Apex-Guard software as a standalone product is not Part 11 compliant and must be integrated with processes and procedures for laboratory Part 11 compliance.

What Does Apex-Guard Impurity Analysis Provide?

The impurity algorithm divides the probability distribution of the impurity activity by the probability distribution of the sample activity, and then identifies a value that is the highest likely percentage (based on a user-defined confidence) of the true impurity activity to the true total sample activity. This percentage is called the Maximum Potential Percent Impurity, or "MPPI".

This method is effective for both identified and unidentified radionuclide impurities. In cases where no peak is found, the MPPI reflects the sensitivity of measurement setup, preventing false reporting of a radionuclide below the below the configured limit.

Apex guard impurity analysis

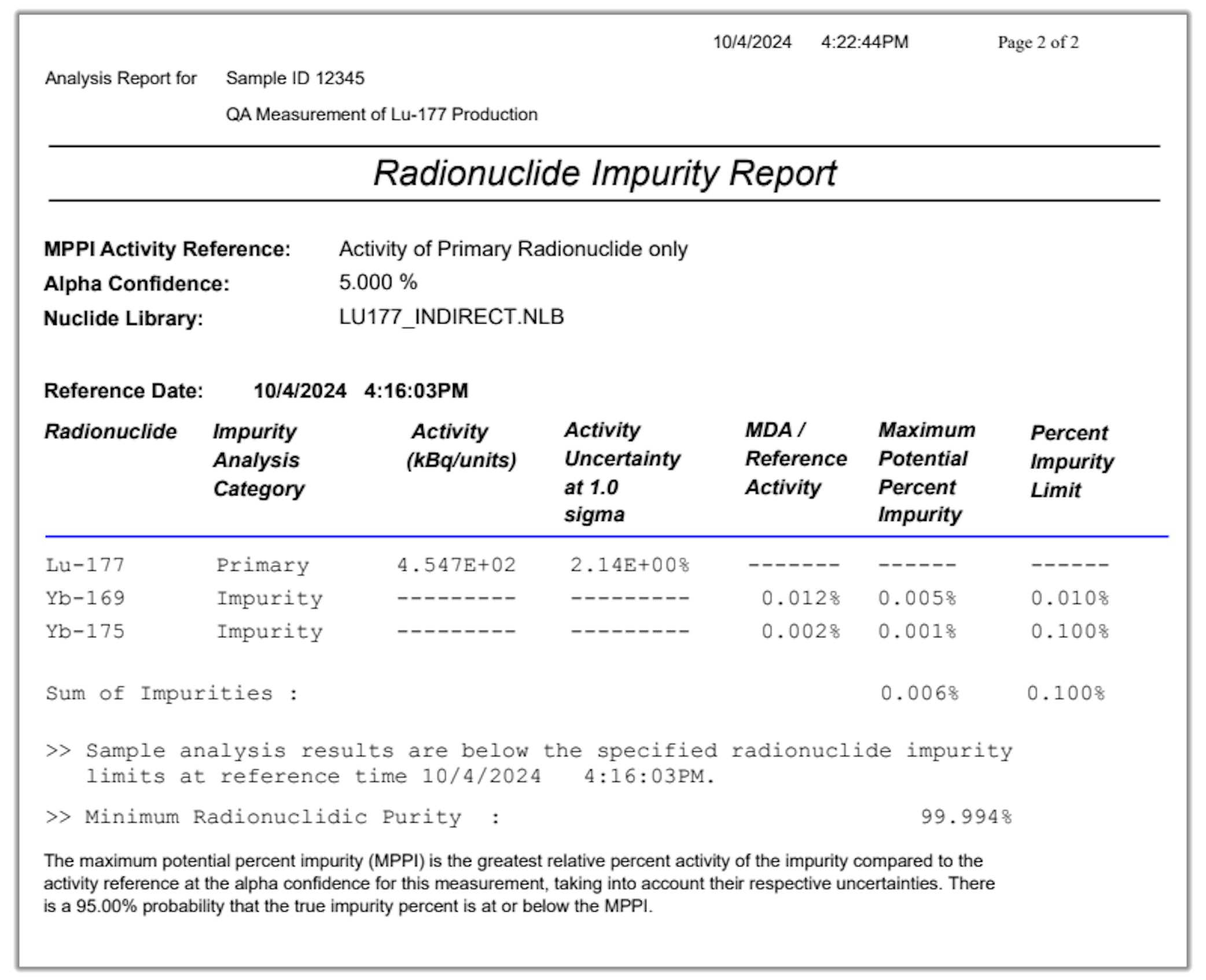

Impurity Report

The Apex-Guard Impurity Report enables users to set impurity limits for individual radionuclides and for the total impurity activity in the sample. These limits are displayed alongside the MPPI value for each impurity for easy understanding of results. The report displays activity, minimum detectable activity (MDA) divided by reference activity (which could be the total sample activity or the primary radionuclide activity, for example), and MPPI for each radionuclide.

  • All Results Lower than Limits — If the MPPI is lower than the user-defined limit for all radionuclides, and the sum of MPPI values are lower than the total sample limit, the report will include the statement, “Sample analysis results are below the specified radionuclide impurity limits.”
  • Any Result Higher than Limit — If any MPPI value is higher than its associated radionuclide limit and/or the sum of MPPI values exceeds the total impurity limit, the line will be highlighted and no analysis evaluation statement is included.

A secondary detail impurity report shows information for each radionuclide emission line, useful for evaluating the spectrum analysis and performing additional investigation, if needed.

Radionuclide impurity report apex guard

Apex-Guard Complete Solution

Apex-Guard is available as a subscription service, combining priority technical support, software updates, and annual or three-year license terms. Mirion Support assists in planning, implementing, and optimizing your operations. With the Apex-Guard application, rely on Mirion Services for:
