Captus® Well Liner
Well liner for the Captus Thyroid Update System.
Well liner for the Captus Thyroid Update System.
Captus® 4000e
Thyroid Uptake System
A comprehensive Nuclear Medicine Measurement System, with specific software modules for thyroid uptake, bioassay, wipe tests, automated quality assurance tests, and isotope library. Includes a fully functional 1024 channel MCA with auto and manual calibration. Timed activity mode features a programmable repetitive timed measurement program.
Features

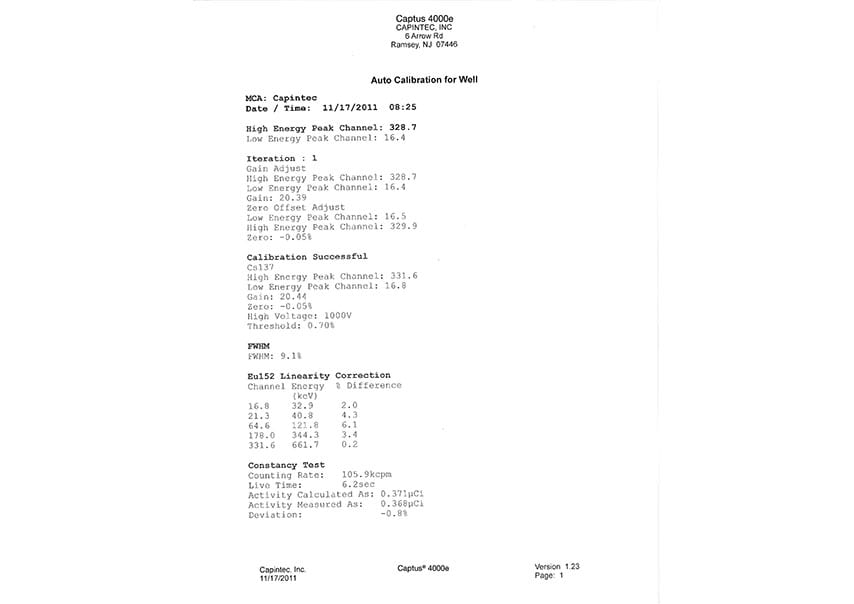

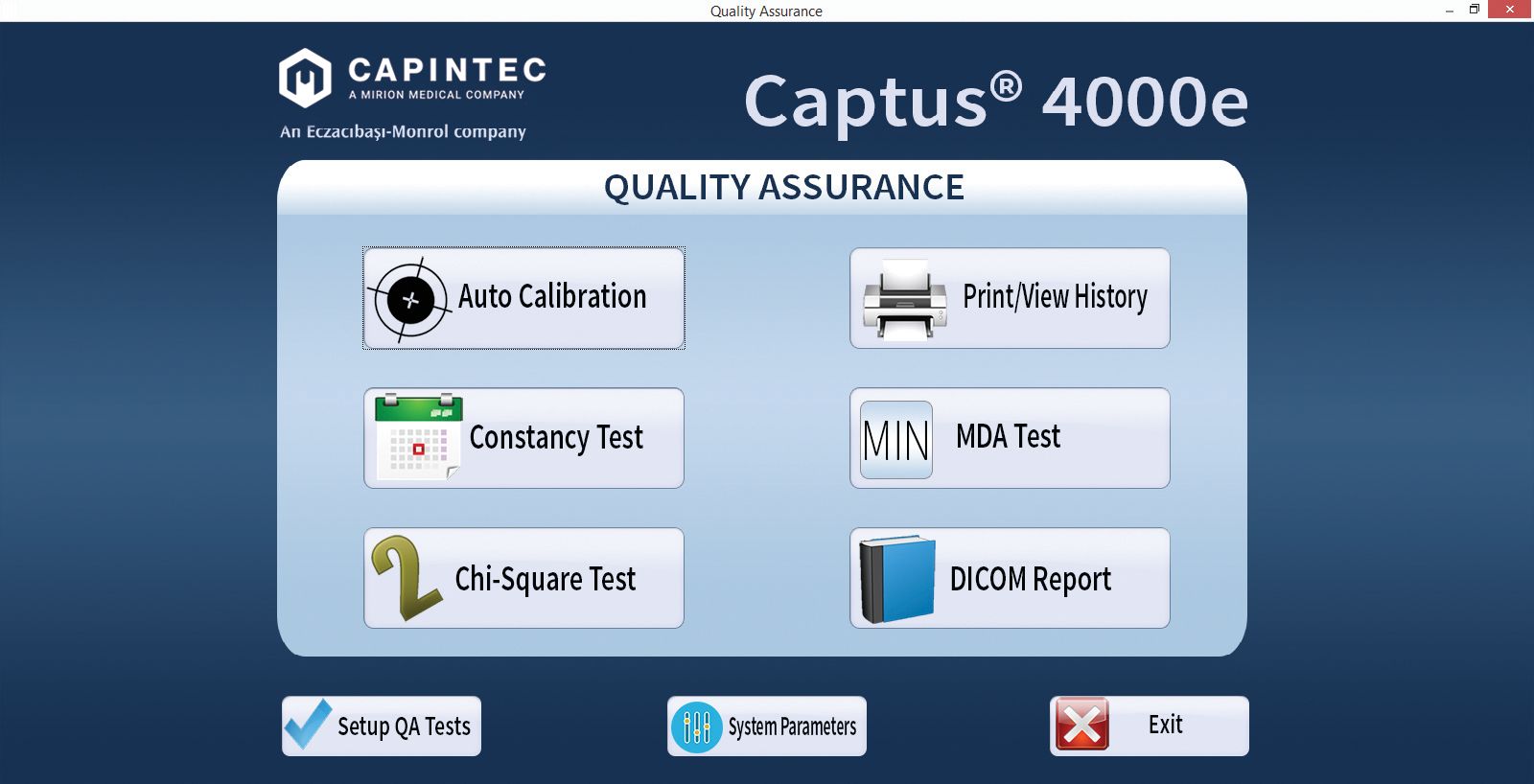

- Diagnostics and Tests: Fully automated Quality Assurance Section includes energy calibration, zero adjust, gain adjust, detector efficiency, detector resolution, chisquare, constancy, and MDA; Manual calibration available in MCA module
- Thyroid Uptake: Provides four predefined protocols; Supports both capsule and liquid dose formats; Dose may be pre-counted before patient assignment; Predose measurement option; Normal range option

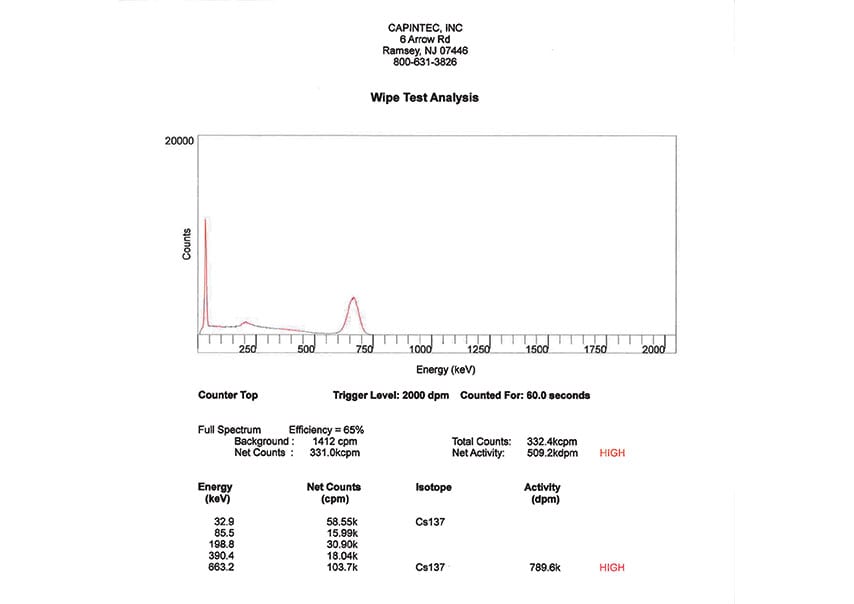

- Wipe Tests: Setup for multiple groupings; Isotope identification available; Spectrum is displayed for each wipe; Activity exceeding trigger levels flagged in red
- MCA: 1024 channels; Automated and manual calibration selection; Preset or user defined ROI; Count set by real time, live time, or total peak counts; Timed activity feature enables predefined continual repetitive measurements
- DICOM Interface (Optional): Fully integrated interface with Captus 4000e system; Retrieve patient data from worklist; Upload patient, wipe test, and QA reports
- Bioassay: Monitors Staff for I-123, I-125, and I-131 exposure; User defined action levels for each isotope; Individual and summary reports available
- Custom Protocol: Create Custom Measurement Sequence; Customizable Reports

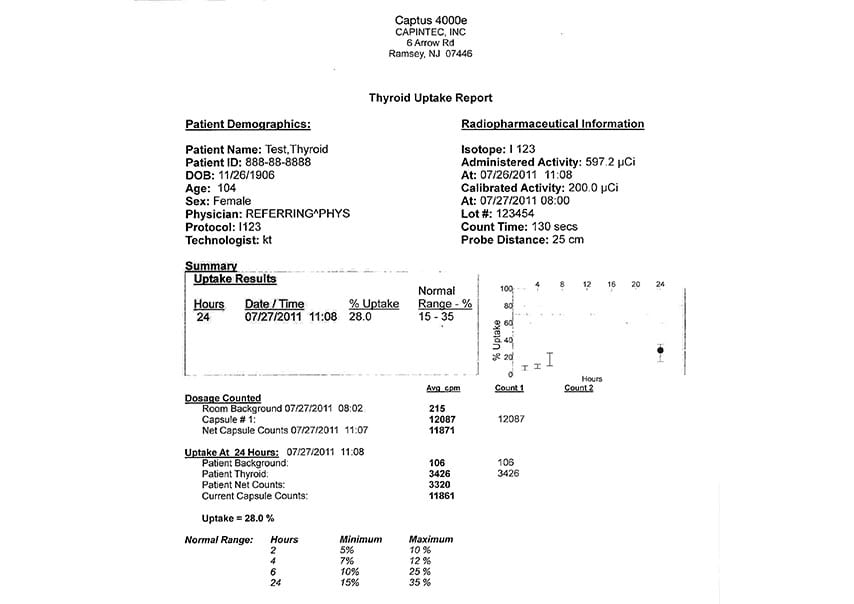

- Reports: Reports include full spectrum graphics; Thyroid report includes time vs. uptake value graph; Data is archived; Reports can be printed or saved as a .pdf file
Description
The Captus 4000e unit is a comprehensive Nuclear Medicine Measurement System, with specific software modules for thyroid uptake, bioassay, wipe tests, automated quality assurance tests, and isotope library. The system includes a fully functional 1024 channel MCA with auto and manual calibration. Timed activity mode features a programmable repetitive timed measurement program. Improved menu-driven workflow and large 20" color touch screen streamlines user interface.
The optional fully integrated DICOM interface communicates directly with hospital information systems, and can transfer patient, wipe test, and QC data. Custom Protocol is included as standard, and Microsoft Office Professional 2010 software is optional.
New and improved stand provides ergonomically adjustable monitor and easy-to-position articulating collimator arm. Four sided comfortable handle grips and swivel wheels ensure easy mobility. PC can be attached to either right or left side to optimize workspace.
Item Numbers
| 5430-30151 | Captus® 4000e Thyroid Uptake System Only |
| 5430-30152 | Captus® 4000e Thyroid Uptake System with 1″ Well |
| 5430-30154 | Captus® 4000e Thyroid Uptake System with 2″ Well |
| 5430-00007 | Captus® 4000e DICOM Interface |
SAFETY NOTICE EXPANDED FOR ADDITIONAL AFFECTED SYSTEMS- UPDATED APRIL 3, 2024
Captus® 4000e Thyroid Uptake Systems
Revised April 3, 2024-adding risk of retention plate failure
Serial Numbers 940001-940547
Shipped Between August 2015 and April 2019
Capintec, a Mirion Medical Company, has issued a Safety Alert regarding reports of spring arm failures and retention plate failures with Captus 4000e Thyroid Uptake Systems. It is believed certain systems shipped between August 2015 and April 2019 could fail due to a broken tension bolt inside the spring arm or retention plate failure.
Review this Revised Safety Alert notification for preventative actions and next steps.
Please complete this short form to stay informed on next steps.
Captus® 4000e Thyroid Uptake Systems
Expanded April 3, 2024
Serial Numbers 940548-941398
Shipped Between August 2019 and February 2024
Capintec, a Mirion Medical Company, is expanding a Safety Notice for potential failure of retention plate to all systems system shipped through February 2024
Review this Safety Alert notification for preventative actions and next steps.
Please complete this short form to stay informed on next steps.
